Surface Roughness Tester

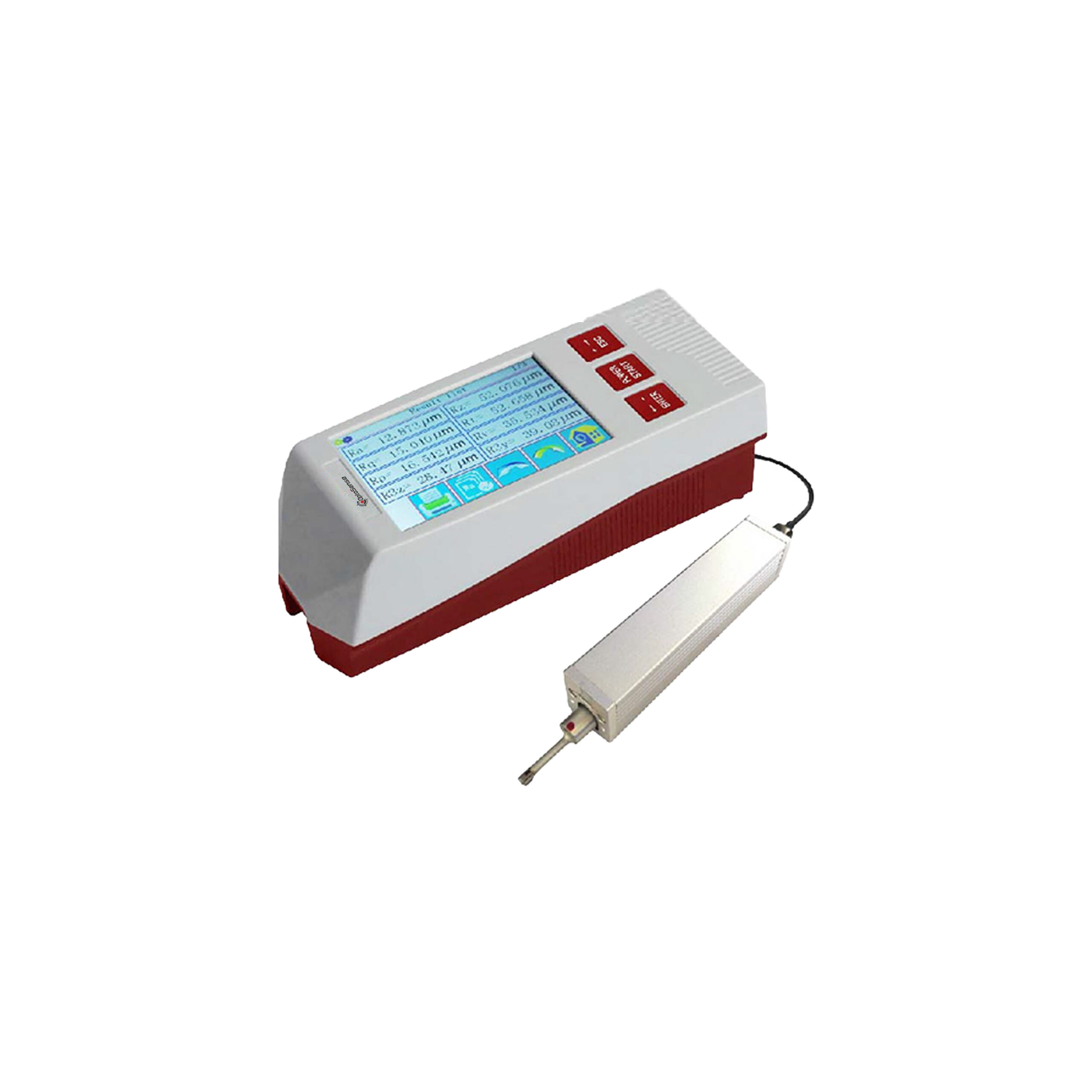

OPT-SR Surface Roughness Tester is a high accuracy instrument for measuring surface roughness. it can be used on variety of machining parts and operates on various surfaces, not only flat but also outer cone, outer cylinder, curved, pinholes, grooves, recesses grooves and axle etc.
The OPT-SR allows surface roughness measurement both on metal and non-metal work-pieces. it is suitable for machining and manufacturing, quality control, inspection departments, especially for measurement on large and heavy work -piece, assembly line, on site. The OPT-SR is a Non Destructive Testing instrument, damage won’t caused to testing piece.
Technical Specification:
| Item | Specification |
|---|---|
| Model | OPT-SR |
| Measuring range | |
| The Z axis (vertical) | 320μm (-160μm-160μm), 12600μin (-6300μin-+6300μin) |
| The X axis move | 17.5mm (0.69 inch) |
| Parameter range | Ra Rq:0.005μm-32μm   Rz R3z Ry Rt Rp Rm:0.02μm-320μm |
| RSk: 0-100%   RS RSm: 1mm   Tp: 0-100% | |
| Resolution | |
| The Z axis (vertical) | 0.002μm/±20μm, 0.004μm/±40μm, 0.008μm/±80μm, 0.02μm/±160μm |
| Parameter | Ra Rz Rq Rt Re Rp Rv R3z R3y Rz(JIS) Ry Rs Rsk Rku ,Rmax Rsm Rmr RPc |
| Rk Rpk Rvk Mr1 Mr2 | |
| Graphic | load curve, Roughness profile, Primary Profile |
| Filter | RC, PC-RC, Gauss, D-P |
| The sampling length (lr) | 0.25, 0.8, 2.5mm |
| Assessment length (ln) | Ln=lrxn   n=1-5 |
| Sensor | |
| Measuring principle | Inductance |
| Stylus tip | Diamond, 90 cone angle, 5μmR |
| Force | Measuring force<4mN, Skid force<400mN |
| Probe head | hard alloy, skid radius of curvature: 40mm |
| Traversing speed | lr=0.25, Vt=0.135mm/s   lr=0.8, Vt=0.5mm/s |
| lr=2.5, Vt=1 mm/s | |
| Precision | 0.001μm |
| Tolerance | not more than ±10% |
| Repeatability | not more than 6% |
| Return | Vt=1 mm/s |
| Power supply | Built-in Lithium ion battery 3200mAh, Charger: DC5V |
| Outline dimension | Main unit: 158×55×52mm   drive unit: 23×27×115mm |
| Weight (main unit) | Around 380g |
| Zoom of height adapter | 40mm |
| Working environment | Temperature: -20°C – 40°C   Humidity: < 90% RH |
| Standards | ISO4287, ANSI B46.1, DIN4768, JIS B601 |
