OPT-3GBS Glovebox System
OPT-3GBS Glovebox System
The Optosense advanced glovebox system provides a sealed, high-purity inert gas environment with oxygen and moisture levels below 1 ppm. Designed for precision applications, it ensures maximum safety and efficiency in research and production processes. Ideal for battery, OLED, and high-tech industries.

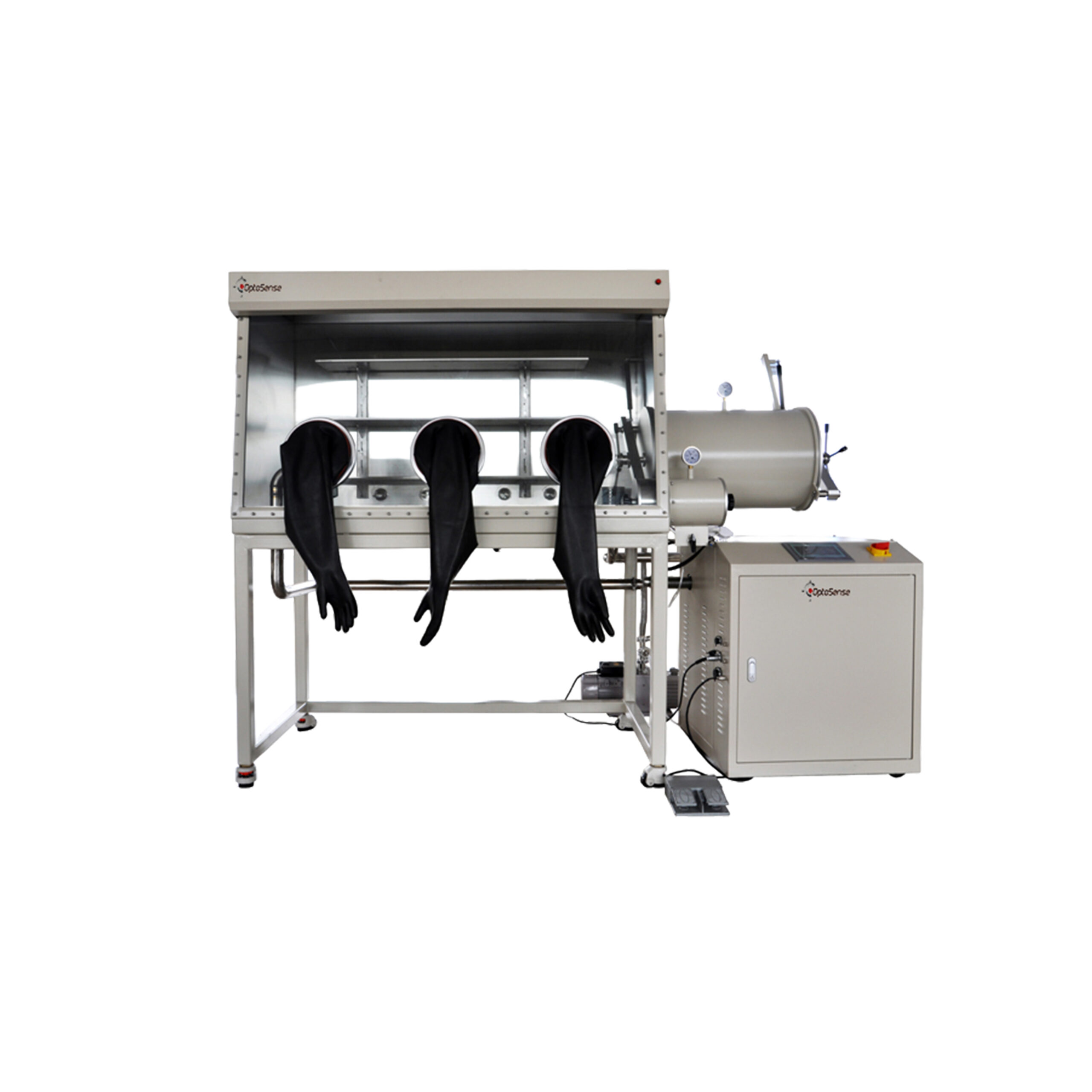

The Optosense Glovebox System (3-Port Advanced Model) is a cutting-edge inert gas glove box solution designed to deliver ultra-clean, oxygen-free, and moisture-free environments for sensitive laboratory and industrial applications. Built with high-quality SUS304 stainless steel and advanced gas purification technology, this system ensures oxygen (O₂) and moisture (H₂O) levels remain below 1 ppm, fully compliant with ISO 10648-2 standards.
The system operates through a fully sealed chamber combined with a closed-loop gas purification and circulation system. Inert gases such as nitrogen (N₂), argon (Ar), or helium (He) are continuously circulated and purified to eliminate reactive contaminants. This makes it an ideal solution for handling air-sensitive materials and processes that require strict environmental control.
With its 3 glove ports design, this model allows multiple users or complex operations simultaneously, improving workflow efficiency in demanding environments. The integrated Siemens PLC control system with a 7-inch touchscreen interface provides real-time monitoring of oxygen and moisture levels, automatic data logging, and intelligent system control, ensuring consistent and reliable performance.
The glovebox is widely used in industries such as lithium-ion battery production, solar cell manufacturing, OLED research, medical device development, and fine chemical processing. Its advanced HEPA filtration system further enhances cleanliness by removing particles larger than 0.3 microns, making it suitable for ultra-clean applications.
🔸 Key Features
- Ultra-low oxygen and moisture levels (<1 ppm)
- ISO 10648-2 compliant controlled environment
- 3 glove ports for enhanced operational flexibility
- Advanced gas purification with automatic regeneration
- Siemens PLC control with 7” touchscreen interface
- HEPA filtration system for particle control (>0.3 μm)
- Dual antechamber system for safe material transfer
- Durable SUS304 stainless steel construction
This Optosense glovebox system is the perfect solution for laboratories, universities, and high-tech production facilities that require precision, reliability, and contamination-free environments.
🔹 Technical Specifications Table
| Specification | Details |
|---|---|
| Model | Optosense 3-Port Glovebox System |
| Chamber Size | L1500 × W760 × H900 mm |
| Material | SUS304 Stainless Steel (3 mm) |
| Glove Ports | 3 Ports, Ø 220 mm |
| Gloves | Butyl Rubber, 8”, Length 800 mm |
| Oxygen Level | < 1 ppm |
| Moisture Level | < 1 ppm |
| HEPA Filters | > 0.3 μm particle filtration |
| Control System | Siemens PLC, 7” Touchscreen |
| Power Supply | 220 VAC, 50 Hz |
| Max Power | ≈ 1.5 kW |
| Blower Speed | 25 L/s |
| Vacuum Pump | 4 L/s (ULVAC, Japan) |
| Large Antechamber | DN 385 × 600 mm |
| Small Antechamber | DN 150 × 300 mm |
| Pressure Range | +15 mbar / -15 mbar |
| Cooling System | Heat exchanger (<45°C) |
| Oxygen Accuracy | 0.1 ppm |
| Moisture Accuracy | 0.1 ppm |
| Leak Rate | <0.001 vol% / hr |
