Reactor System

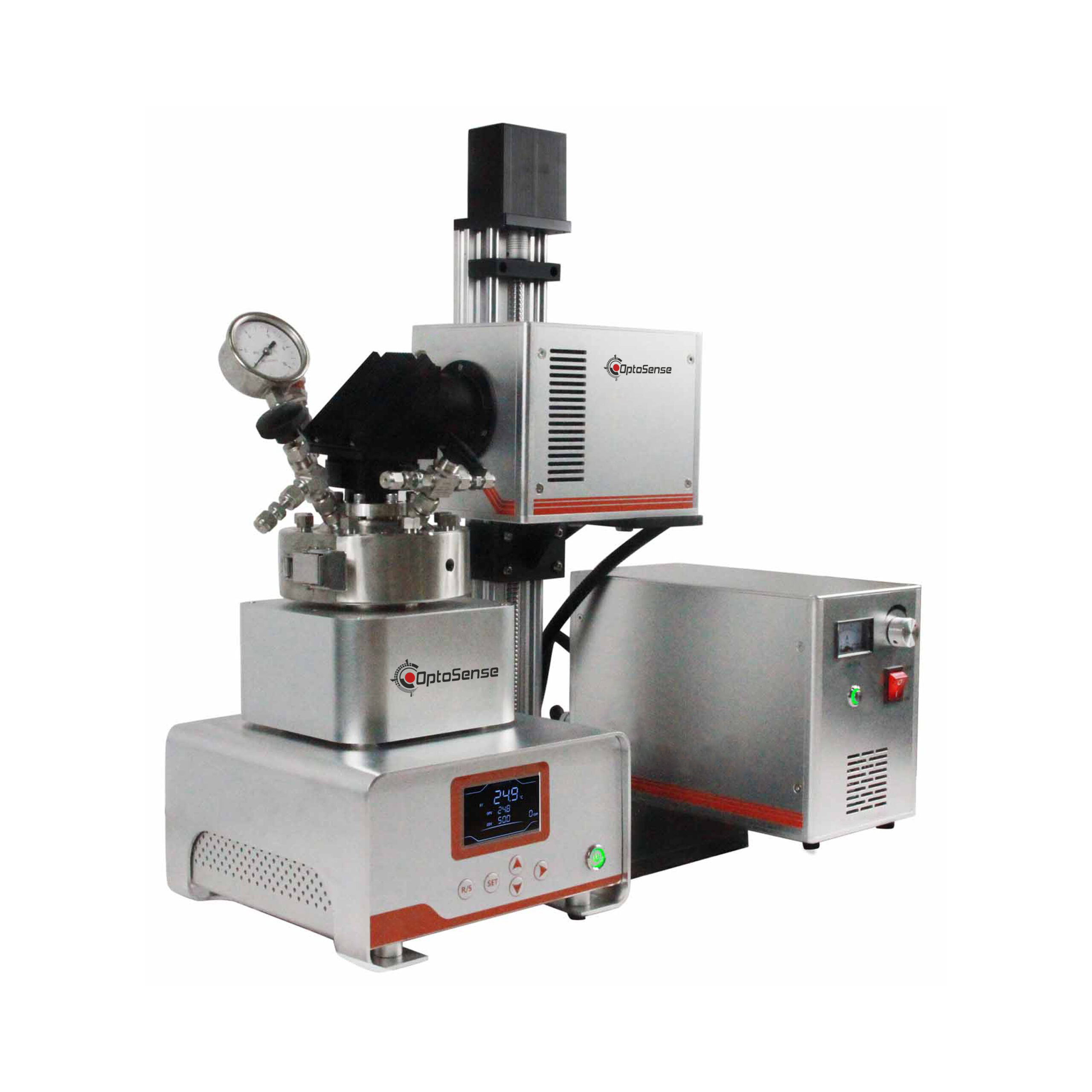

The Optosense OPT-HPR+ Photocatalytic Reactor delivers efficient high-temperature, high-pressure reactions for advanced photocatalytic applications. Equipped with sapphire windows and precise temperature control, it ensures safe, continuous, and high-yield performance. Ideal for gas-liquid and gas-solid processes.

The Optosense OPT-HPR+ Photocatalytic Reactor is designed to optimize photocatalytic reactions under challenging conditions. Its robust construction and advanced features make it a versatile solution for both research and industrial applications, providing reliable performance in high-temperature and high-pressure environments. With its sapphire glass window, the reactor offers excellent light transmission, enhancing photocatalytic efficiency while remaining resistant to corrosion, wear, and thermal stress.

Safety and precision are central to the OPT-HPR+ design. The reactor features dual-point temperature control and a PID temperature program for high-accuracy thermal management. Magnetic stirring ensures homogeneous mixing, while a double-seal flange system guarantees secure assembly and prevents leaks. A safety relief valve adds an extra layer of protection, enabling worry-free operation.

This reactor is suitable for a variety of photocatalytic processes, including CO2 reduction, VOC degradation, NOx removal, and formaldehyde decomposition. It supports gas-liquid and gas-solid reactions, making it ideal for high-pressure studies, long-term dissolution experiments, and supercritical particle synthesis. Real-time monitoring via the LCD display allows users to track reaction temperature, vessel temperature, and stirring speed for precise process control.

Key Features:

High Pressure & Temperature: Operates up to 10 MPa and 300°C, with optional configurations reaching 20 or 30 MPa.
Sapphire Glass Window: Provides superior light transmission and durability.
Versatile Illumination: Top or side irradiation for optimized photocatalysis.
User-Friendly Design: Quick assembly with double-sealed flanges and magnetic stirring.
Advanced Control: PID temperature control and dual-point monitoring for stable reaction conditions.

Parameter	Specifications
Capacity	25 ml, 50 ml, 100 ml, 250 ml, 500 ml
Light Window	Sapphire glass, 40 mm diameter
Irradiation	Top (TOP) or Side illumination
Operating Pressure	10 MPa (optional 20 or 30 MPa)
Reactor Material	316L stainless steel, PTFE coated, Hastelloy optional
Temperature Control	Up to 300°C, 0.1°C precision with PID control
Connection	Flanged with double-seal system
Stirring & Temperature	Magnetic stirring, dual-point temperature control

The OPT-HPR+ Photocatalytic Reactor is an innovative, high-performance platform that combines safety, precision, and adaptability, making it an excellent choice for cutting-edge photocatalytic research and applications.
